The weft density measuring instrument is a new type of real-time weft density measurement device that can detect the weft density of most fabrics when the machine speed is within the range of 0 to 90m/min. It is mainly used for the real-time detection of the weft density of knitted, woven, and other fabrics with requirements for weft density (grammage). By measuring the weft density values of the fabric before and after the setting process by the setting machine, the overfeed value is obtained through the overfeed algorithm, and the speed of the machine is adjusted via feedback to achieve the goal of stabilizing the grammage of the fabric. This device can capture clear high-speed images, ensuring the accuracy of the calculation results. The detection error of this product is ≤ 2%. Product Functions:
Product Functions:
1.Two sets of weft density measuring instruments are used for fabric feeding and discharging, forming a closed-loop overfeeding control system with high real-time performance.
2. With a special light source design, it is suitable for measuring the organizational structure and texture characteristics of different types of fabrics, covering a wide range.
3.High-definition image capture and high-precision detection can effectively control the overfeeding amount, ensuring that the grammage of the fabric is qualified and uniform after setting.

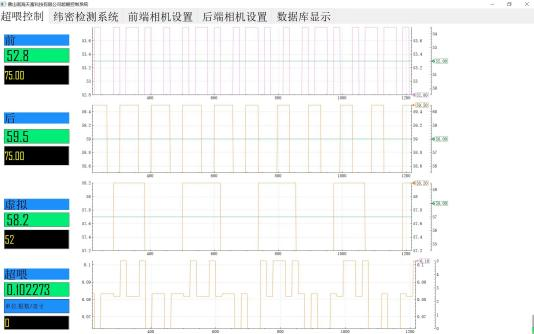

4. It has a user-friendly human-machine interface, with intuitive data display and one-click switching.
5. The operation is simple. Without the need for professional knowledge, users can quickly get started, and it is highly user-friendly.
6.It has the functions of automatic data storage and upload, and can interface with ERP, MES, and cloud management systems.
7. It adopts digital focusing technology, which can automatically focus on fabrics of different thicknesses and has strong robustness against the up-and-down movement of the fabric.
